March 29, 2019

Friday Funny 03-29/19 (Mainsail Cover Part Deux ll)

I have a bruise on my forehead.

The mainsail saga continues. (Part one here.) I didn't return to sewing until Sunday, and it was a day filled with angst. No matter what I did, I couldn't get the tension correct. I posted in the Facebook group, Sailrite Users, and asked for advice. I got everything from the simplistic, "adjust tension", (thanks buddy, I never would have thought of that....😒), to take the machine completely apart. What did I do?

I took the machine apart, well, not completely, but the bobbin assembly, and I took off the upper plate to see what the needle bar, and tension assembly were doing. I had previously purchased quite a few spare parts, and I replaced a couple of pieces that were worn. Sailrite has a video for just about everything, but the repair ones are not on their website, and you have to get them from opening a problem ticket, or in my case, from someone in the Facebook group. If you own a Sailrite, and have never seen these, here's a link to them.


Still, the machine refused to tension properly, and I sent in a trouble report via email to Sailrite Monday morning. I received several suggestions from them, and tried them all, tried them with different thread, tried them with different needles, tried them with alternating layers of material, tried to reroute tension, NOTHING worked. Now in addition to the tension mess, I couldn't sew more than 4 layers, or the webbing, without the thread breaking at the needle immediately.

Also adding a few expletive deleteds

I don't even want to talk about the waste of thread. Profilen 4oz cone, 825yards sells at Sailrite for $75.95, and that's without the shipping to get it to Alaska.

My "sewing room"

Profilen thread

My practice scraps.

I wrote a scathing email to Sailrite, listing the many tries for success, listing how much sewing I have done since I was 10years old, listing how many sewing machines I have ever used, it was cathartic. Before I sent it, (getting ahold of myself), I remembered someone had said, it's always the easy things that trip you up, so I got out the manual for the machine, and went over every detail of threading, tension, and needle placement. Guess what I found....  When I switched needles, I put the new one in backwards.

Palm to Face

So, the fix was to replace the gib hook in the bobbin assembly, and use a larger needle to accommodate the Profilen thread. I adjusted the tension knob again, and TA DA, we're back to sewing again. All of this falderal lasted from Sunday to Wednesday, and I finished the webbing, and buckles Wednesday evening. Remember that hole I put in the canvas with the hot knife? It's under the webbing now, and no one knows, except you of course. I sewed like a fiend on Thursday, I was determined to get this project done. We had been using a strip of velcro in front of the mast for the front closure, and we wanted to add a zipper for security. It was lucky I had an extra zipper of approximately the correct length in my rubbermaid tub of tricks. I completed that, and then added our logo patch. It was time to put the cover in place. Bill helped with the parts I couldn't reach, and it was finished. Whew!

DONE!

Oh yes, I did delete my scathing email to Sailrite, and replaced it with a thank-you for the great support they provide, also ordered a few more replacement parts, and extra needles.

If anyone would like a Denali Rose patch, just let me know, I had to buy a large amount in order to customize my patch.  😁




As always, we enjoy hearing from you, either here in comments or on our Facebook Denali Rose Sailboat page.


March 27, 2019

Tidbit: Wire hose clamps, repairs, and seizing

This is one of a series of brief, no nonsense posts that we call aTidbit:
noun; small and [possibly] particularly interesting item of gossip or information...
The purpose is to share succinct posts about lessons learned, or things we use or do that work [or don't...] that are common to most of us boaters.

The goal is to garner feedback from those of you having first-hand experience with a different approach/ solution/ product/ or additional useful information to share...

We never assume what we are sharing is the ideal or only; it just seems to best suit our needs [and/or habits and/or budget] from our experiences thus far...
Note: The original blog post [below] has been inducted into Tidbits since it qualifies, but was published 3 years before we initiated the Tidbit series in Jan-2019...
[First published 11-Jan-2016; Updated 27-Mar-2019]

                               ➛ ➛ Peruse the right-hand sidebar for the up-to-date list of Tidbits ➛ ➛



One of my favorite tools is the ClampTite wire seizing tool.




It is great for clamping hoses of any diameter, repairs, safety wiring, seizing shackles, etc.




The tool linked below is the heavy duty version I use. [Stay away from the lighter duty version with the aluminum wingnut as it is much fussier to use from my experience. The leverage and inertia gained using the bronze T-knob on the heavy duty version, below, really smooths the operation...]

CLT01L - Clamptite - 5 1/4" Stainless Steel Tool w/ Aluminum Bronze T-Bar Nut Lanyard Extension

There are two ways to use this tool:
  • The double wrap is great for hose clamping, repairs, etc.
    • This is nothing more than a Prusik Knot using wire
      • And a Prusik Knot is nothing more than a Cow Hitch with one or more extra turns....
  • The single wrap is a good way to seize safety wiring
    • e.g., Anchor shackles, seizing cleats to shrouds, etc.



You can use just about any wire, but I mainly keep the following sizes and alloys on hand:
  • .032" [304 and 316]
  • .041" [304 and 316]
  • .051" [316 and 400- for seizing anchor shackles, etc.]
  • .061" [304]

Clamptite has a good overview of which wire and tool size to use for what, and some additional videos.

Here is another vendor with videos and photos which will help you better understand uses and using this handy tool.

The Clamptite site has good illustrations and a brief video demonstrating how to use the tool for both the single and double wrap styles I mentioned above.

Do you have some favorite unusual tools?

March 22, 2019

Friday Funny 03-22/19 (Mainsail Cover Part Deux)



I've read somewhere that "perfectionism is the enemy of good enough", I believe that to be true. Also, most people know when you start a project, and you make a prediction as to when it'll be finished, always add additional days, more money, multiple elements, and increased frustration to it.

I made the current mainsail cover two years ago, to replace the aged one that finally shredded in the wind.

Old mainsail cover.

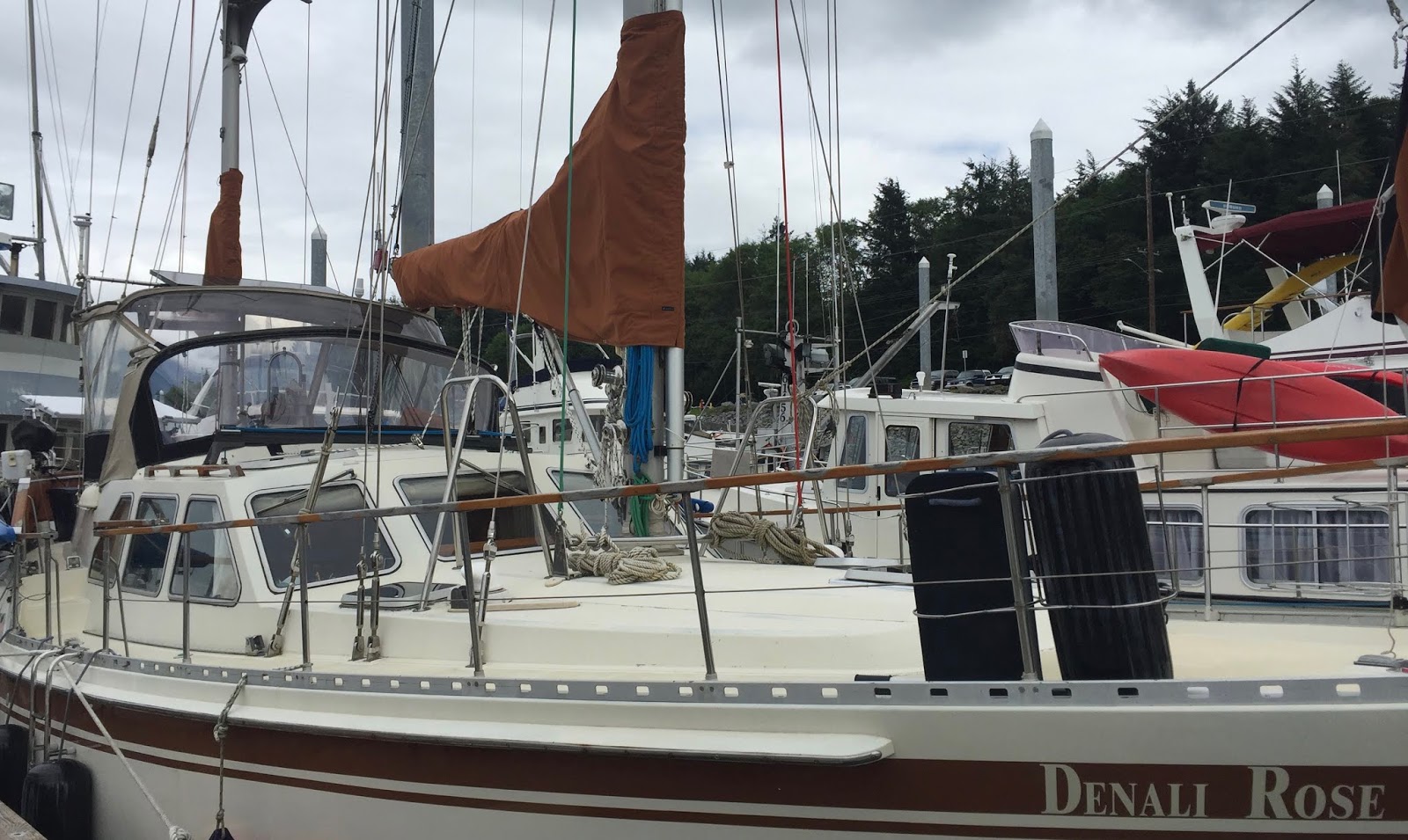

New mainsail cover. Denali Rose dressed in her Carhartt colors.

I used the old cover as a sort of pattern for the new one, and changed/added a few differences. After using it for the last couple of years, we decided we needed to make a few more modifications.

We felt that the cover impeded the view forward from the cockpit, and the twist-lock fasteners were not holding up as well in the marine environment, as we would have liked. They were getting hard to twist, and I guessed they would eventually seize up.



We talked about what else we could do, and I ordered webbing, and plastic buckles from Seattle Fabrics. I figured about 2 days to get this project completed. I should have known better.

First to measure up how much to cut off of the bottom of the cover.

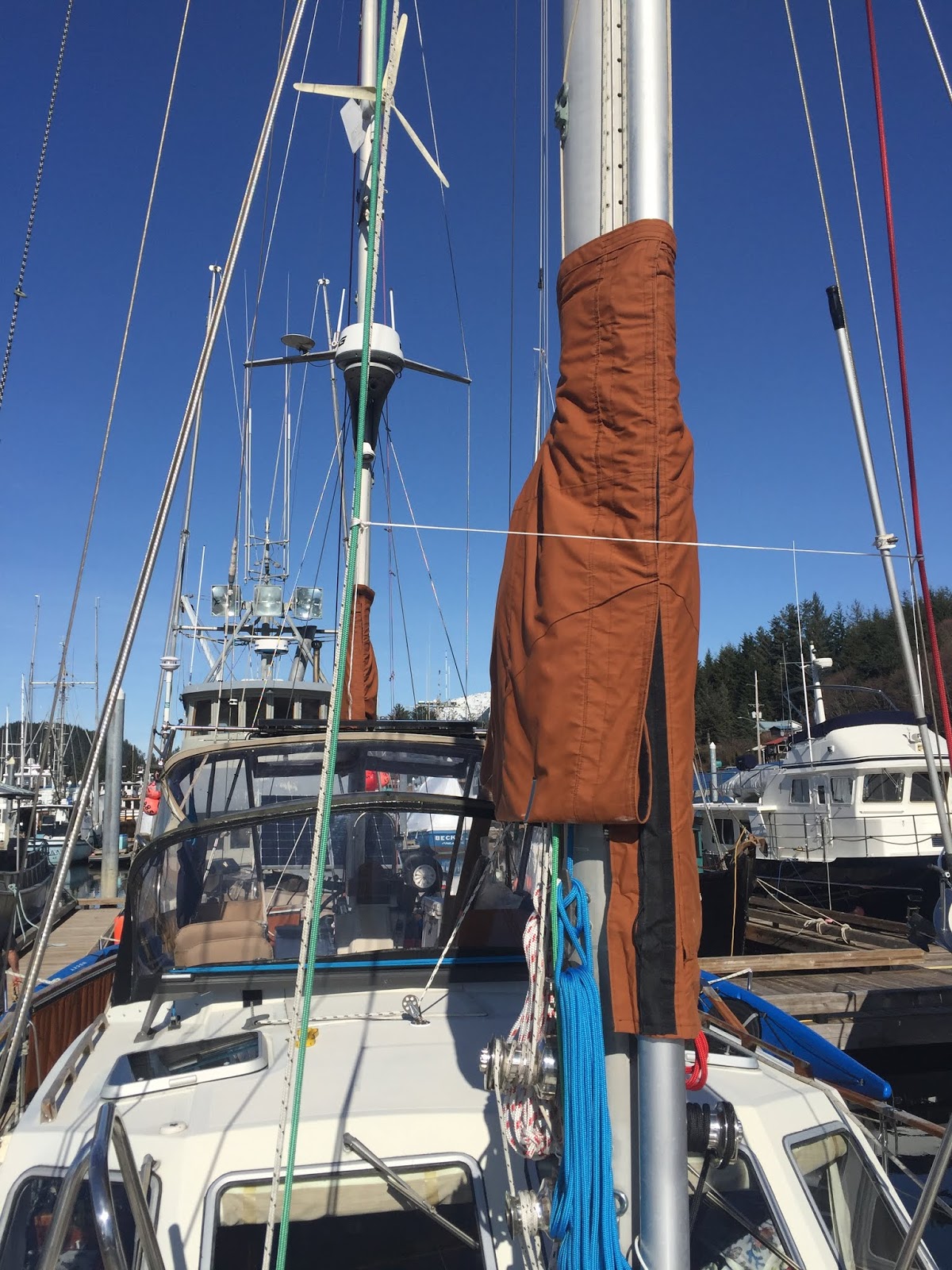

Making the cover sleeker.
The weather is cooperating, with a nice dry spell, and I laid it out on the dock to make my cut with the hot knife. This device cuts the fabric, and because it's also hot, it seals the edge to keep it from fraying.

Take a breath, and cut away!

Our dock finger partner boat is away sitting out of the water, on the hard, in the Marine Service center area, waiting to be sold. That means I can use the finger for projects, and not be in anyone's way.

I made the cut, and then laid the hot knife down on the canvas... duh, it melted a small hole before I could pick it back up.

Crud, and some other words.

I took the cover inside, and sewed on the binding tape for the hem. It's getting late, and I knew if I continued on, I'd just frustrate myself with being tired, and hungry, and so I called it quits for the day.



Day two, I turned the hem under, and used seam stick to hold it in place, now I needed to put it on the boom to make sure of my measurements. I got it up there, but it's a challenge to get the front closed in front of the mast, because it's too high for me to reach. It was difficult before, but I'm still not as mobile as I would like, and now it's impossible. Bill is away doing other things so I pulled it back down, and decided to go with it. The folded hem wasn't sitting nicely, it was going to require some finesse, (yanking and tugging), so again, to keep down frustration, I tossed it in the sewing area, and quit for the day. Scope creep starts...

Day three, I sewed the hem up, it's not as bad as I thought it would be, happy points for waiting till I'm rested and fed. I found Bill was ready to help me put it back on the boom, so I could verify my hem, (hoping not to rip out seams), and to mark where we wanted the new tie-downs. Using my chalk marker, we decided where the webbing should be located, and I pulled it back down. I still needed to mull over in my mind how I wanted to secure the strap ends, we don't want them flying around in the wind.

Day four, I'm procrastinating by writing this blog post, but I can't finish the post until I get back to sewing, so it's a catch 22.

(Forced myself back to sewing.) I had purchased new thread for this project, I decided to switch from Tenara to Profilen. Both have a high UV rating, but Tenara makes my machine's tension go haywire, and takes lots of fiddling, I thought to try another type, and see if the tension improves. All was well with the new thread until I started sewing the webbing on.

Lovely. Not.

Next:

I interrupt this regularly scheduled blog post to say I didn't do any more sewing that day or today.

We did our yearly fasting, and this morning went in for our blood draw. Wrangell's medical center does a handful of wellness tests and provides the results at our annual Health Fair in April. It's a terrific service, and extremely cost effective at $25.00 a test.

Then I went to my Friday Water Aerobics class, and when that let out we went to watch the Coast Guard, who were in town for rescue drills. We took a bunch of great photos, and videos, and it probably deserves it's own post.

We ate our lunch about 1:30p, did some errands, and arrived back to the boat. Bill is working our our in-counter fridge, so working at the sewing table is out. I'd just be in the way. That's my story, and I'm sticking to it. Tomorrow is another day.......

Coast Guard rescue swimmer is in the water.
The helicopter came from the Sitka Station.

Selfies next to the Coast Guard helicopter.

As always, we enjoy hearing from you, either here in comments or on our Facebook Denali Rose Sailboat page.


March 20, 2019

Tidbit: Tacking the headsail with an inner forestay in place...

Or... Alternative methods of attaching sheets to headsails...

This is one of a series of brief, no nonsense posts that we call aTidbit:
noun; small and [possibly] particularly interesting item of gossip or information...
The purpose is to share succinct posts about lessons learned, or things we use or do that work [or don't...] that are common to most of us boaters.


The goal is to garner feedback from those of you having first-hand experience with a different approach/ solution/ product/ or additional useful information to share...
We never assume what we are sharing is the ideal or only; it just seems to best suit our needs [and/or habits and/or budget] from our experiences thus far...
Sometimes these Tidbits originate from a topic of discussion on one of the forums we participate in, and this happens to be one: Link to original post [4-Jan-2019; A good read by sailors sharing their tried and true methods...]

Following is an expanded version of my original reply to the above forum discussion...

                               ➛ ➛ Peruse the right-hand sidebar for the up-to-date list of Tidbits ➛ ➛




If your boat doesn't have an inner forestay, we hereby give you a few minutes of your life back and advise against reading any further... [Unless you are interested in using something besides bowline knots to affix sheets to your headsail(s)...]

Scenario: When tacking [or even gybing] the headsail with an inner forestay in place, the inner stay can interfere with the smooth transition of the headsail from windward to leward in many conditions...

We can always furl the headsail as we come into the wind, and unfurl on the new tack, but we would rather not have to...

We can also send someone forward to walk the sail through 'the slot' in very light air...

And in some conditions we remove the inner forestay [using the Highfield lever]. But unless sailing in very light air [making tacking the headsail easier] or beating into stronger winds, we prefer to leave it in place.

Instead, when tacking, sometimes it helps to time the release of the [now] windward sheet; waiting until the jib begins to fill on the new tack— pulling the the sail through the gap once the sheet is released.

To help mitigate snagging the typical pair of [ungainly] bowline knots on the inner forestay when tacking in lighter air, we do as many racers purport: cow hitch the jib sheets [one long sheet] to the headsail clew... [We use a cow hitch on our staysail sheets as well.]

We mark the center of the sheet line to facilitate attachment and observe if the cow hitch ever slips— and it hasn't so far... [20 years and counting with this approach.]

Worried about a cow hitch slipping under load?

Use a Prusik Knot [or even a 'short' Prusik; a cow hitch with one extra wrap]. It has the added benefit of still holding if one of the lines parted near the knot [unlike a cow hitch...]
This is also how we have always attached our anchor bridle line— with 100% success to date...
One could also temporarily seize the sheetlines right behind the cow hitch if it appeared to be slipping. [e.g., nylon zipties, seizing twine, etc.] But I have never found it necessary. Perhaps this is in part because we switch to [balance better with] the staysail once the wind picks up [depending upon circumstances...]

Another approach if worried about the possibility slipping under high loads is to run one of the two sheet ends back through the clew fitting and then through the loop so formed [a half-hitch through the clew ring...]
Regardless of attachment method, to reduce chafe we install a short length of Dyneema Chafe Sleeve on the sheets at the clew attachment point.

The trade-offs of using a cow hitch include:
  • No quick disconnect [knife in an emergency- then back to bowlines with 2 individual sheets...]
  • A very long jib sheet to deal with when removed from the sail
    • We flake it after halving the line, so the center is first off the flake for quick affixing to the sail. This way we are passing a flake of rope through the loop instead of two long sheets...
  • The knot can slip under extreme loads
  • The knot can slip if one line parts close to the hitch
    • Both of these concerns are eliminated by using a Prusik knot instead of a cow hitch...

Other proven options we are considering experimenting with include:

To keep the preferred small knot profile but make sheets quick to remove, we could make a small, soft eye [i.e., no thimble] in one end of each sheet. Use a soft shackle through those eyes to affix the sheets to the clew. [Incorporate Dynema Chafe sleeve inside those eyes.]
Since our current sheets were new in 2014, adding a soft eye into one end of this older line would be difficult. [if even possible...] We may do this next time they need replacing...
Meanwhile, we will test how well a soft shackle attachment works for us by tying either an Alpine Butterfly Loop or a Dropper Loop in the middle of our current sheet line and affixing that to the jib clew with a soft shackle... Stay tuned...
Do you have other solutions that work well for you?

March 16, 2019

Friday Funny 03-15/19 (Just Another Day)

Heritage Harbor, Wrangell, as the sun is about to rise above the hill.

It's been a mundane week, not a lot to report on, and my mind is not seizing on a fun, informative topic. Instead, the everyday stuff that happened.....

We took Elsie to the vet while he's in town, she's been losing weight, and we're a bit concerned about it. She came to live with us when she showed up at our door one October, so we're not sure about her age, but between the doctor and us, we're guessing at 17 years old. She sleeps more now, but there are times when she runs, and plays like she's a kitten again, not bad for a partially blind old cat.

The vet found a heart murmur, that wasn't there at her last checkup, so he's prescribed a heart medicine, and she's getting a couple of antibiotic shots for a possible infection.

Elsie relaxing while underway last summer. She has her harness, and leash on, to keep her confined in the cockpit.

Water is back on in the marina. Wrangell received some much needed rain, and the temperatures are finally above freezing. I, (dare I say it), think spring is on the way. The commercial guys are working on boats, and gear, preparing for the season, so it's getting busy around here.

I cleared out my sewing area, and the machine is now humming away on the projects. I'm taking the mainsail cover I made two years ago, and redesigning it, I'm going off the traditional, and doing something unique. We don't like the amount of yardage that is obstructing the view forward, and I'm going to streamline the profile, and change the connecting hardware. I'll let you in on the completed project when it's finished.

Mainsail cover now, I'm going to make it sleeker.

My other creative side, with card making has finally reached the storage limit. I've been receiving supplies so that when we are out at anchor, holed up away from the weather, I can craft to my hearts content. I've been following some blogs, and websites, learned many new techniques, and I'm looking forward to trying them out. New inks, stamps, dies, and yes, remember how we used my little die machine for a boat project? Well, I really needed to get the larger one, (of course, you say), so I did!

Old, and new, it's compact.

Cool huh? I made these butterflies with layering stamps.

Hope you have a fun St. Patrick's Day!




💚💚💚💚



As always, we enjoy hearing from you, either here in comments or on our Facebook Denali Rose Sailboat page.


March 11, 2019

Tidbit: Sleeping well at anchor... [Updated Jan-2024]

This is one of a series of brief, no nonsense posts that we call a Tidbit:
noun; small and [possibly] particularly interesting item of gossip or information...
The purpose is to share succinct posts about lessons learned, or things we use or do that work [or don't...] that are common to most of us boaters.

The goal is to garner feedback from those of you having first-hand experience with a different approach/ solution/ product/ or additional useful information to share...

We never assume what we are sharing is the ideal or only; it just seems to best suit our needs [and/or habits and/or budget] from our experiences thus far...
Note: The original blog post [below] has been inducted into Tidbits since it qualifies, but was originally published almost 2 1/2 years before we initiated the Tidbit series in Jan-2019...
[First published 24-Aug-2016]


                        ➛ ➛ Peruse the right-hand sidebar for the up-to-date list of Tidbits ➛ ➛


One of the many joys of cruising is the feeling of liberation once you gain trust in your ability to anchor, in your ground tackle, and your method(s) of maintaining situational awareness.



Denali Rose at anchor in Traitors Bay, Alaska [Near Ketchikan...] Great bear viewing area for only a 1/2 mile walk on shore... Hence the occasional float plane brings a load of cruise ship passengers for a quick tour.

Here we are anchored in 80 ft with rocks not necessarily close to shore bared at lower tides in several quadrants, and a large, very rapidly shoaling head of the bay which is aft of the boat in this photo.  [e.g., if the anchor dragged, the depth change is so abrupt, we would go aground before the anchor reached an uphill portion to reset upon...]

Just another typical anchorage in paradise...

Trustworthy anchoring is not unlike that feeling of accomplishment earned once you can quickly- and repeatedly- parallel park an automobile in a tight spot on a steep, icy road in heavy traffic. Not everyone gets there...


But this is not a discussion about how to anchor [nor parallel park...] This is about being able to relax afterward, while maintaining awareness...



What do we do? [Nothing unique...]

  • Trace our route into the anchorage in case we need to follow it out in the dark
  • Anchor like we're expecting 60 knot sustained winds [Force 11] with higher gusts
  • Capture the coordinates of the anchor
  • Take bearings on landmarks when possible
  • Set at least two proven and reliable anchor alarms
  • Set wind and depth alarms
  • Keep broadcasting our position on AIS
  • Illuminate the boat well at deck level- to supplement the masthead anchor light
  • Set a RADAR guard zone [when the situation warrants]
  • Stay aware
  • Set an anchor watch if needed [at least then everyone else can sleep...]

Details:


We begin by always recording a GPS track on one or more chart plotters when transiting, and especially when entering an anchorage area. [Many have tricky entrances and some require certain stages of tide as well for either optimied depth or current- or both...]


That gives us a trail to follow should we have to bail-out of our anchorage in the middle of the inevitable tempest in the dark... [The author learned this the hard way.; a long story from eons ago (pre-GPS) but with a happy— yet expensive— ending...]


While still tracking, we scout the area(s) where we would like to drop the hook by slowly driving in a circle repersenting the anchoring perimeter. This is how we evaluate the bottom and any obstacles within our chosen anchor zone... Our forward looking SONAR is also used during this stage.


Before dropping the anchor, we will place the boat at the position we believe we want to drop the anchor [the center of the previously scouted perimeter] and perform a 360° turn-in-place [a back and fill maneuver...] to map the bottom with the forward facing SONAR from the anchor's view if you will. This is helpful later as we watch our swing at anchor. [Are we staying within the anchoring area we already scrutinized?]


This also helps us to properly calculate the anchor scope required at high tide- especially on a bottom with uneven depth where the depth can often change by 100% or more depending where the boat is in the circle of swing...

Side note: The 15-20 foot tidal variations in our present cruising area have negligible effect on the diameter of the circle of swing at anchor. [Use Pythagoras' Theorem to demonstrate this to yourself...] However, the scope ratio is affected more in shallower anchorages [rare for us...] when tidal fluctuation is a significant percentage of the depth.
We always mark the anchor location and continue GPS tracking on the chartplotters and navigation apps once anchored. It is very informative to see where we have wandered while on our leash. [This is automatic on our Vesper Watchmate Vision; more below.]  It is also extremely enlightening if conditions worsen or we start getting hit with williwaws [a type of katabatic wind gust.]

Next, we always anchor as though we expect it to blow 60 knots. [Force 11] It only takes about 5 extra minutes to do this every time [and that includes deploying a bridle...] Because of this we rarely have to get up at o-dark-thirty to deal with an anchor related issue. [Our own anchor anyway...]



Okay. We're anchored. Now what?

Diligently maintain situational awareness while we enjoy doing other things...

This means staying cognizant of our boat's position with relation to land; other vessels and obstacles
around us [above and below the waterline...]; the tide, weather, etc.
When we anchor with the intension of leaving the boat [e.g., kayaking, a shore trip, visit another boat, or whatever...] we always wait at least an hour after anchoring to confirm our swing [wind/tide] at anchor is as anticipated, and that the anchor location doesn't move without our knowing... This also gives us time to recheck the weather, tide, anchor scope calculations, etc...
How do we maintain situational awareness full time while at anchor? [Hint: You can't if you ever plan to sleep...]

Since we spend a majority of our time in our pilothouse when on the the boat at anchor, we are always visually aware of what is going on around us [except when very dark or when sleeping...] If we are concerned about anything around us, we sleep in the pilothouse where, with just a sit-up, we can quickly glance outside. If an anchor watch is needed, the pilothouse is a comfortable watchstanding location in foul weather...


What about when we both sleep with no anchor watch? [i.e., normal circumstances...]

We typically set multiple anchor alarms, may set RADAR guard zones, always transmit and receive AIS, always depth and wind alarms, and sometimes marine radio(s), etc. as needed.

On prior boats in the days before GPS [and then for a time, dithered GPS; hence no accurate anchor alarms] a tell-tale compass in one's berth area was somewhat handy to help with orientation when awakened at anchor and during a passage. But it didn't show one's position nor surroundings. One had to get up and look around.


Another habit from the old days is taking some bearings on lights, landmarks, etc. I can also spot in the dark. [e.g., lights, some high points on land (e.g., unique trees, rock formations, mountain tops, etc.)— the silhouettes of which would be discernable in the dark.]

Now, we always set anchor [and depth and wind] alarms on our Vesper Watchmate Vision AIS transponder. We will often also set an anchor alarm one of our Zeus2 MFDs.

And depending upon circumstances, we might also set one or two tablet anchor alarms and RADAR Guard Zone alarm(s).

If we are within cell phone range and plan to be away from the boat, we used to* also set a geofence on our remote vessel monitoring system— essentially a remote notification anchor alarm [among other alerts... e.g., bilge pump, battery status, etc.]
* Our older remote vessel monitoring system was dependent upon 2G cellular data— which has been deprecated worldwide. We haven't upgraded yet.
We can also set up remote anchor alarm notifications using two iPhones [one on the boat] using the Remote feature built-in to several navigation apps. [More below]



What Anchor Alarm apps do we use on tablets/ smartphones?

For back-up anchor alarms [on our smart phones or tablets] we currently use either Anchor! and/or the anchor alarm function built into the AquaMap Marine or TZiBoat charting apps. Thus far we find them both to be the best, most robust, adjustable, and detailed graphic anchor watch applications available...

As brought up in the comments section, below, false alarms can be a sleep-depriving nuisance when using anchor drag alert apps. [Usually due to momentary loss of GPS signal— and in the case of our Vesper Watchmate, momentary loss of wind or depth data on the NMEA2000 network.]
What might help? Add user adjustable delays before an alarm is sounded, and more granular sub-settings.
As an example, AquaMap Marine has the best alarm tunability I have seen so far:

Update Apr-2023: AquaMap announced cell phone to cell phone anchor monitoring so you can be alerted if your anchor drags while away from yor boat [in locations with cell signals at the boat and your location. [Not shown below.]



For information about other boating related applications we are using/evaluating, see our maintained page about Computers, Devices, and Applications.
All redundant alarms are set with ever increasing- but safe- parameters. The goal is for them to sound one at a time [if things are happening slowly...]

Setting several alarms takes very little time and provides the needed redundancy for our comfort. [On those rare occasions when it is important to be awakened by an alarm clock (e.g., to catch a flight) we set two; this reduces inclination to wake up toandpeek to see of a single alarm failed to awaken us...]
An important note about the geometry of anchor alarms:
Are you familiar with the GPS position error [up to 2x...] so common in most anchor alarms? If not, read this article from Boat US- which includes description of a fail-safe technique for setting two alarms on different apps.
Note that Vesper AIS transponders with anchor alarms updated in 2016 compensate for this error, as do the two apps I cited above.
Do you know of other products that compensate for this error? Please let us know by leaving a comment.
We also each have tablets with very accurate built-in GPS running navigation software as well as a mirror of the MFD showing the vessel's position and an overlay RADAR image, etc. These are always within reach- especially when sleeping.

If expecting weather or vessel traffic, or if either occur unexpectedly, we set zone alarm(s) on the RADAR [our 4G consumes very little power...] to warn of other vessels [or land, etc.] encroaching on our comfort zone.


The RADAR image is also viewable on our tablets- which is handy when awakened by a RADAR alarm while sleeping. We can quickly assess and mute the alarm from the tablet, and of course get up if necessary, or roll over and go back to sleep if not... [e.g., a dinghy passing through our RADAR watch zone is not worth getting up over unless they are coming to see us...]


Changing the depth alarm to suit is also important to us on those rare occasions we anchor in water shallower than 60ft at low tide... [This is another anchor watch function of the Vesper Watchmate Vision AIS.]


The Vesper AIS also allows us to set wind alarms [directional and/or speed changes.]



If we could only set one anchor alarm, which one would we choose today?

Without question it would be the Vesper Watchmate Vision AIS. [It is always set first regardless...]
If we didn't have the Vesper, then we would choose one or both of the anchor alarm apps mentioned above. [Which we typically use as back-ups anyway...]

Update Feb-2023: Vesper has been acquired by Garmin. Garmin has decided to discontinue all Vesper AIS models except the Cortex. The Cortex has an even better anchor alarm that what we describe here. We will continue to use our Watchmate Vision AIS until it no longer serves its purpose.

Why is the Verper our unequivocal first choice? [From the manufacturer's website:]

Safety at Anchor – Anchor Watch


Every sailor knows that being at anchor is no guarantee of total safety. In particular, anchors can drag without those on board being aware. Thanks to Anchor Watch, however, you can be safer and sleep well at night. That’s because Anchor Watch sounds the alarm if you drift outside a zone defined around your anchor position. Activate the anchor watch when you drop the anchor touching the Vision screen or using a mobile device to activate it remotely from the windlass or anywhere on-board.

Wind speed, wind direction change or minimum water depth alarms


Get added safety at anchor by setting wind speed, wind direction change and minimum water depth alarms and take quick precautionary action when these alarms are triggered.

Move Anchor Position


If your Anchor position needs fine-tuning after you have marked it, you can do that with the Move Anchor Position.

Breadcrumbs.


Vision plots your position in relation to the anchor and marks your positions over time for easy visual identification if you are dragging. It also works well on smartphones and tablets.
Enhancement suggestion for Vesper :
There is one feature I believe would make the Vesper Watchmate Vision Anchor Alarm even more useful; being able to choose screen orientation.  [Update: Now available on their Cortex model.]
Currently it will only display North-up. There are times when it would be far handier if it would display Heading-up. However, I realize this could make the view jump around and not be useful in certain circumstances...  [But then we could switch back to N-up just like a chart plotter...]

What about the flip-side: helping others become aware of [and see] us?


Proactive measures include:

RADAR: To improve the chances of returning a strong RADAR signal, we have a large Blipper radar reflector mounted high on the main mast. [I imagine some may wonder why we stow a fender way up there...]

AIS: We also broadcast our position on AIS 24/7 when away from a dock. Additionally, our Vesper Watchmate Vision AIS transceiver allows us to tune alarm thresholds for different scenarios [including AIS Filters, depth, and wind direction and velocity.] Therefore, while at anchor we don't have any distant vessel alerts waking us up- only potential close encounters as established by values we set... [And the AIS is wired to an optional, very LOUD external alarm...]


Like our B&G Zeus2 MFDs, the Vesper Watchmate Vision is viewable [and controllable] via WiFi on our smartphones and tablets...

Improved Visibility: To enhance our vessel's visibility to others when we are at anchor in the dark [remember it doesn't always get dark overnight in higher latitudes during summer...] in addition to the masthead anchor light, we also deploy 2 portable anchor lights; one on the inner forestay on the bow about 12 feet above the deck [and under the black anchor ball day shape] and one amidships- typically inside the cockpit enclosure to serve two perposes. We have a 3rd anchor light [like the portables but with a mounting bracket] permanently mounted on the stern davits- which also serves as a 'dinghy garage' light...
Article discussing where to display your anchor light(s).
And what do the international rules say? (COLREGS Anex I)

(i)All-round lights shall be so located as not to be obscured by masts,
topmasts or structures within angular sectors of more than 6
degrees, except anchor lights prescribed in Rule 30, which need
not be placed at an impracticable height above the hull.
(ii)If it is impracticable to comply with paragraph (b)(i) of this section
by exhibiting only one all-round light, two all-round lights shall be
used suitably positioned or screened so that they appear, as far as
practicable, as one light at a distance of one mile.”



Denali Rose from ~2.5 miles- taken with a smartphone camera from our dinghy.
Masthead anchor light is off in this photo; you are seeing 3 of these portable anchor lights. Bow is on the right in this photo. (Highest light.) There are no shore lights or other vessels in this (calm) anchorage- which is the norm for us. [Note that the snip of red light seen in the photo is showing through a cabin port; i.e., it is not a NAV light.]


These deck level anchor lights are visible for 2+ miles and, since they hang upside down, do a nice job of illuminating the deck, too. This makes our boat very visible both from both water level and a distance. [Mast head anchor lights are difficult to spot/ triangulate from water level when close-to. Ours is 60 feet above the water, so we rarely use it...]

All [4] of our LED anchor lights have dusk-to-dawn photo sensors, so they are self managing.

Of course, it never hurts to keep the habit of flying the appropriate day shapes as well... [This is enforced in some areas/countries; for our sailboat a black sphere while at anchor, and a black cone pointing down while motoring...]


Dayshapes signal our vessel status in daylight to anyone near enough to care...

And we can always hail them on the Marine VHF radio...


Reactive measures

What do we do when other vessels enter our self proclaimed 'safe zone'? [e.g., A 200 ft radius Guard Zone set on the RADAR.]


Illumination and light signals:

Remember, our deck is already well illuminated and defined by the 3 deck level and an optional masthead dusk-to-dawn anchor lights...



The first thing we do if there is vessel traffic encroaching on our safe zone in the dark is turn on our two LED deck lights [one on each mast of our ketch...]

We have a switch next to our berth as well as in the pilothouse and cockpit. We can also turn the deck lights on remotely with our smartphones via the remote vessel monitoring system when we have cell signals. [This is handy when returning to the boat from the dinghy, kayak, or when on a dock.]

This adds even more light to our deck, and perhaps indicates to the other vessel we know they are there...

We can also activate a 900 lumen 'back-up' light on our stern from within our sleeping cabin. [In the future, once we install the forward looking LED 'headlights' for night running, we will add the ability to activate them remotely as well.]

On the masthead there is a (SOS) strobe light which I wouldn't hesitate to activate if warranted.

We also have a variety of extremely bright, portable signaling devices, flashlights, emergency dive lights, floodlights, and long distance spotlights [all of which have rapid strobe functions, and several with automated SOS] we can use to gain the attention of another vessel in our vacinity.

In addiiton to handheld lights, we can also deploy one of our laser signaling devices [kept with our PFDs.]

Not to mention pyrotechnic flairs...


Sound Signals:


We also have a switch in our sleeping cabin [as well as both helms] that allows us to sound the air horn [and a klaxon] if necessary should we decide a wake-up call is warranted for another vessel... [Or to alert uninvited guests on deck we are aware of their presence, which is a non-issue in our current cruising grounds— unless herons count...]


In dense fog, or if we have to anchor in a non-traditional area [e.g., an emergency requires we anchor where we are- possibly in the open location or fairway where other traffic might not expect it...] or other extenuating circumstances requiring appropriate sound signals, we broadcast the appropriate sound signal over the PA horn via our VHF radio.


The PA is also useful for one or two-way communication, so we can speak to others if needed.  Since it is also a microphone, we can hear waves, other boats, people talking, fog horns, etc.— especially useful when motoring in poor visibility...

We can also use our very loud Storm whistles, oral blow horns, and portable compressed air horns.


And we can always hail them on the Marine VHF radio...


Conclusion:


Using these techniques and approaches, we typically sleep very well at anchor- but always with a heightened level of situational awareness.

All of these modern electronics consume so little power that we don't hesitate to avail ourselves of their charms as needed.

Of course, we don't rely solely upon electronics to keep watch- they are like any other aid to navigation; we don't count on any single one... Instead we post anchor watches during times of concern [regardless of reason] and I always check the physical world anytime I have a 'feeling' [What was that?] or am up for any other reason...

Always anchoring as if it will blow 60 kts with excellent, proven ground tackle and having a selection of trustworthy, dependable, proven electronic aids to back-up our physical monitoring enhances our levels of relaxation and comfort while at anchor. [And we are typically the only boat at anchor where we are exploring these days...]

Do you take any special measures to to help you relax while at anchor?


Favorite Sundowner recipes included!  Please leave us a comment.


Related resources:

Denali Rose Ground Tackle Inventory
Computers, Devices and Applications we use
